Discover Assets

Overview​

Asset discovery registers your physical hardware with Colony using IPMI (Intelligent Platform Management Interface). Once discovered, assets can be provisioned with operating systems and preconfigured Kubernetes cluster templates.

Prerequisites​

Before discovering assets:

  • Management cluster initialized (setup guide)
  • KUBECONFIG exported: export KUBECONFIG=~/.colony/config
  • IPMI credentials for each asset (username, password, IP address)
  • Network connectivity from management cluster to IPMI interfaces
  • Assets powered on (or IPMI can power them on)

IPMI Requirements​

IPMI Connectivity​

Your assets must have IPMI/BMC (Baseboard Management Controller) configured:

  • IPMI IP Address: Out-of-band management IP (e.g., 192.168.2.50)
  • Username: IPMI admin user (often ADMIN, admin, or vendor-specific)
  • Password: IPMI password
  • Network Access: Management cluster can reach IPMI IPs

Common IPMI implementations:

  • Dell: iDRAC
  • HP: iLO
  • Supermicro: IPMI
  • Lenovo: IMM

Enable PXE Boot​

Ensure assets are configured to boot from network:

  1. Access IPMI web interface or BIOS
  2. Enable PXE boot on management network interface
  3. Set boot order: Network → Disk
  4. Save and reboot if needed
tip

Most servers default to disk boot. You may need to manually enable PXE boot in BIOS/UEFI or trigger a one-time network boot via IPMI.

Power On Assets for Discovery​

Assets automatically discover when they PXE boot on the management network. Use ipmitool to power on and manage your assets:

Check Power Status​

ipmitool -H 10.90.13.16 -I lanplus -U admin -P $PASS power status

Power On Asset​

ipmitool -H 10.90.13.16 -I lanplus -U admin -P $PASS power on

Set PXE Boot​

# Set next boot to PXE
ipmitool -H 10.90.13.16 -I lanplus -U admin -P $PASS chassis bootdev pxe

# Power cycle to boot from network
ipmitool -H 10.90.13.16 -I lanplus -U admin -P $PASS power reset

Bulk Power Operations​

For multiple assets, create a CSV file:

# Create ipmi-assets.csv with format: ip,username,password
# 10.90.13.16,admin,password1
# 10.90.13.17,admin,password2

# Power on all assets
while IFS=, read -r IP USER PASS; do
  echo "Powering on $IP..."
  ipmitool -H "$IP" -I lanplus -U "$USER" -P "$PASS" chassis bootdev pxe
  ipmitool -H "$IP" -I lanplus -U "$USER" -P "$PASS" power on
  sleep 2
done < ipmi-assets.csv

Assets will PXE boot and automatically register with Colony.

Verification​

Check Colony UI​

  1. Log in to colony.konstruct.io
  2. Navigate to Assets
  3. Verify new assets appear in the list
  4. Check status progresses: discovering → available

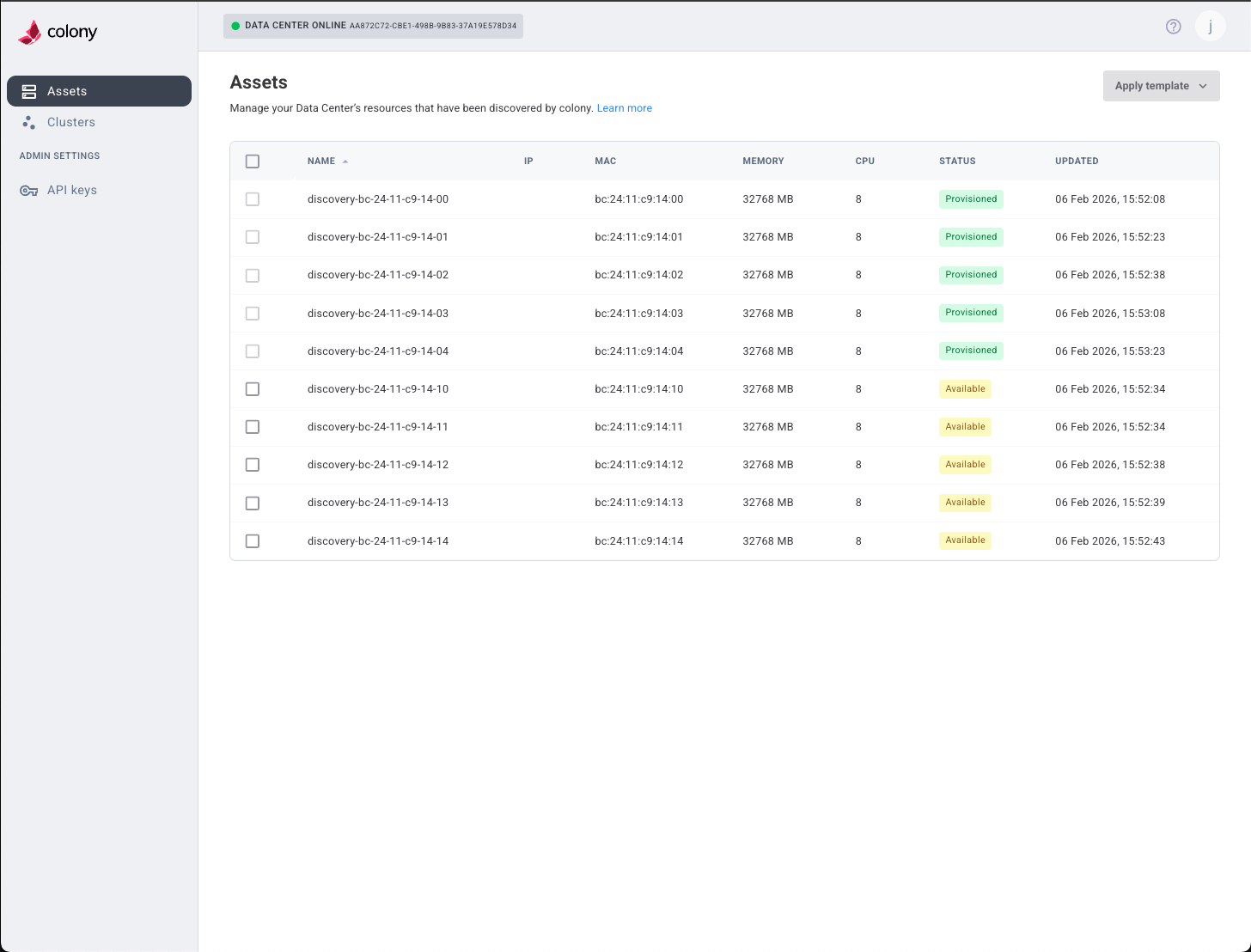

Assets with mixed status

Check with kubectl​

View hardware resources in management cluster:

# List all hardware
kubectl get hardware -A

# Watch for new hardware
kubectl get hardware -A -w

# Describe specific hardware
kubectl describe hardware -n <namespace> <hardware-name>

Asset Lifecycle​

Assets progress through these statuses:

StatusDescriptionActions Available
discoveringInitial registration, hardware inventory in progressWait for completion
availableReady for provisioningProvision OS, Create cluster
provisioningOS installation in progressWait, Monitor logs
provisionedOS installed, ready for useCreate cluster (K3s), SSH access
deprovisioningDisk wipe in progressWait for "available"

Status Flow​

discovering → available → provisioning → provisioned
                ↑            ↓
                └── deprovisioning ←┘

Typical Timeline​

  • discovering: 3-8 minutes (hardware detection, inventory)
  • available: Stable state, ready for use
  • provisioning: 14-23 minutes for Ubuntu, varies for Talos
  • provisioned: Stable state, OS running
  • deprovisioning: 5-10 minutes (disk wipe)

Troubleshooting​

Discovery Fails​

Symptoms: Asset doesn't appear in UI or kubectl after add-ipmi.

Solutions:

  • Verify IPMI IP is correct and pingable: ping 192.168.2.50
  • Check IPMI credentials are correct (try web interface: https://192.168.2.50)
  • Ensure management cluster can reach IPMI network (may need routing)
  • Check colony-agent logs: kubectl logs -n colony -l app=colony-agent
  • Verify Tinkerbell rufio (IPMI controller) is running: kubectl get pods -n tinkerbell -l app=rufio

Asset Stuck in "discovering"​

Symptoms: Asset remains in "discovering" status for >15 minutes.

Solutions:

  • Check if asset powered on: verify via IPMI web interface or ipmitool
  • Ensure PXE boot is enabled in BIOS/UEFI
  • Verify DHCP server is responding to PXE requests
  • Check TFTP server (Tinkerbell smee) is running: kubectl logs -n tinkerbell -l app=smee
  • Review Tinkerbell workflow: kubectl get workflows -A
  • Power cycle asset via IPMI and retry

IPMI Authentication Fails​

Symptoms: Error: "unable to authenticate" or "invalid credentials".

Solutions:

  • Verify username and password in IPMI web interface
  • Check for special characters in password (may need escaping)
  • Some IPMI systems use different default users (ADMIN, admin, root)
  • Reset IPMI to factory defaults if locked out
  • Consult hardware vendor documentation for default credentials

Asset Boots from Disk, Not Network​

Symptoms: Asset doesn't PXE boot, boots to existing OS or "no bootable device".

Solutions:

  • Enable PXE boot in BIOS/UEFI boot settings
  • Set boot order: Network → Disk (or use one-time boot menu)
  • Verify correct network interface is set for PXE (usually first onboard NIC)
  • Check DHCP server includes PXE boot options (next-server, bootfile)
  • Manually trigger network boot via IPMI: ipmitool -H <ip> -U <user> -P <pass> chassis bootdev pxe

Asset Not Reachable on Management Network​

Symptoms: After PXE boot, asset gets no IP or wrong subnet.

Solutions:

  • Verify asset is connected to correct network (same as management cluster)
  • Check DHCP server has available leases
  • Ensure network switch ports are in correct VLAN (untagged)
  • Check for MAC address filtering or port security
  • Verify network cable is connected and link is up

Hardware Detection Incomplete​

Symptoms: Asset shows in UI but missing CPUs, RAM, disks, or NICs.

Solutions:

  • Wait longer (full hardware inventory can take 5-10 minutes)
  • Check asset console via IPMI for error messages
  • Verify hardware is properly seated (reseat RAM, drives if accessible)
  • Check for BIOS/firmware issues (update firmware if needed)
  • Some hardware may not report inventory via standard methods

Bulk Discovery Tips​

Prepare Asset List​

Before bulk discovery, create an inventory:

# assets.csv
hostname,ipmi_ip,ipmi_user,ipmi_pass,datacenter,rack,slot
server01,192.168.2.50,ADMIN,pass1,DC1,R01,U01
server02,192.168.2.51,ADMIN,pass2,DC1,R01,U02
server03,192.168.2.52,ADMIN,pass3,DC1,R02,U01

Stagger Discovery​

Avoid overwhelming IPMI systems:

  • Add 5-10 second delay between discoveries
  • Discover in batches (e.g., 10 at a time)
  • Monitor for failures and retry

Use Consistent Credentials​

For easier management:

  • Set same IPMI password on all assets
  • Use consistent username (e.g., ADMIN)
  • Document in secure password manager

Label Assets​

After discovery, tag assets in Colony UI:

  • Datacenter location
  • Rack and U position
  • Hardware generation
  • Purpose (compute, storage, etc.)

This helps with organization and troubleshooting.

What's Next​

After discovering assets:

Wait for "available" Status​

Monitor assets until status changes to "available" (3-8 minutes).

Choose Your Path​

Path A: Provision Ubuntu (required for K3s):

Provision Ubuntu on Assets →

Path B: Create Cluster (Civo Stack or Talos Linux):

Path C: Provision K3s (after Ubuntu provisioning):

Create K3s Cluster →
