Create Civo Stack Cluster

Overview​

This guide walks through creating a Civo Stack cluster with Talos Linux and the CSE installer using the Colony UI. The process takes 40-60 minutes from start to ready.

Learn more about Civo Stack Enterprise →

Prerequisites​

Before starting, ensure you have:

  • 5 minimum assets (3 control planes + 2 workers for storage)
  • Civo Stack credentials (GitLab token, image pull secret, API token, region)
  • Network configuration (gateway, DNS, NTP, static IPs)
  • Management cluster running

See Prerequisites for details.

Step 1: Navigate to Cluster Creation​

  1. Log in to colony.konstruct.io
  2. Select your datacenter from the dashboard
  3. Click Clusters in the sidebar
  4. Click Create Cluster

Step 2: Initial Configuration​

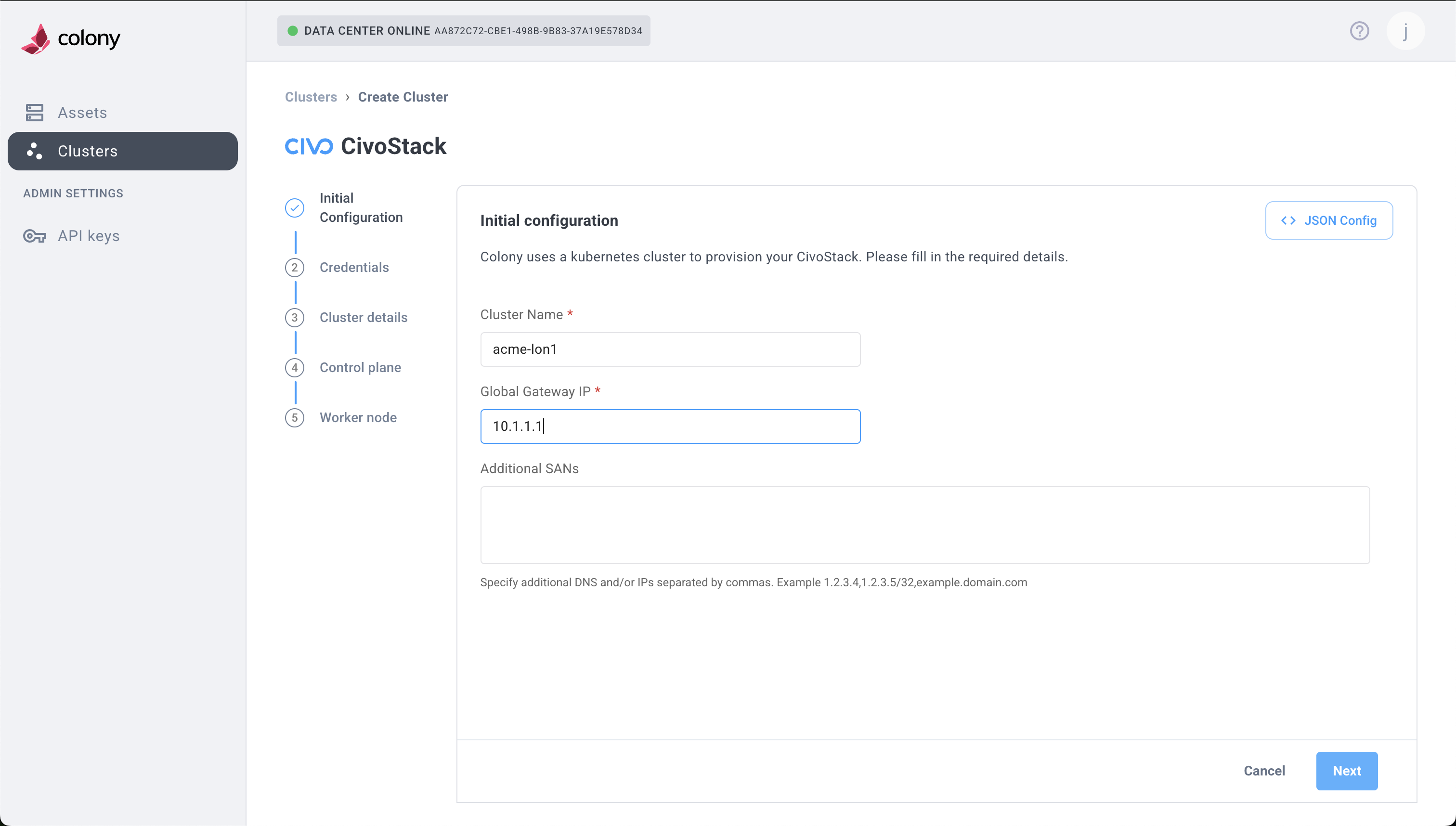

Initial Configuration

Configure basic cluster settings:

Cluster Name​

Enter a descriptive name for your cluster:

production-cluster-01

Use lowercase, alphanumeric characters, and hyphens. This name appears in the UI and kubeconfig.

Cluster Type​

Select Civo Stack from the dropdown.

This sets the cluster type to civo_stack with flavor talos.

Gateway IP​

Enter your network gateway IP address:

192.168.1.1

This is the default route for all cluster nodes.

Extra SANs (Optional)​

Add additional Subject Alternative Names for the API server certificate:

cluster.example.com
192.168.1.100

Comma-separated list. Leave empty if using only the default API server IP.

Click Next to continue.

Step 3: Configure Control Plane​

Select Assets​

  1. Click Add Control Plane Node
  2. From the dropdown, select an available asset
  3. Repeat for additional control planes (3 recommended for HA)
tip

For high availability, use 3 or 5 control plane nodes. Odd numbers avoid split-brain scenarios.

Assign Static IPs​

For each control plane node, enter:

  • IP Address: Static IP for this node (e.g., 192.168.1.101)
  • Subnet: Network prefix (e.g., 24 for /24 or 255.255.255.0)

Network Configuration​

  • DNS Servers: Comma-separated IPs (e.g., 8.8.8.8,8.8.4.4)
  • NTP Servers: Time sync servers (e.g., time.cloudflare.com or 0.pool.ntp.org,1.pool.ntp.org)

Storage Configuration​

Disk Device: Device path for etcd and Kubernetes data:

/dev/sda

Common values:

  • /dev/sda - First SATA/SCSI disk
  • /dev/nvme0n1 - First NVMe disk
  • /dev/vda - First virtio disk (VMs)
warning

This disk will be wiped during provisioning. Ensure it's the correct device and contains no critical data.

Advanced Configuration (Optional)​

For advanced storage and networking options, click the ... (more options) button on each node:

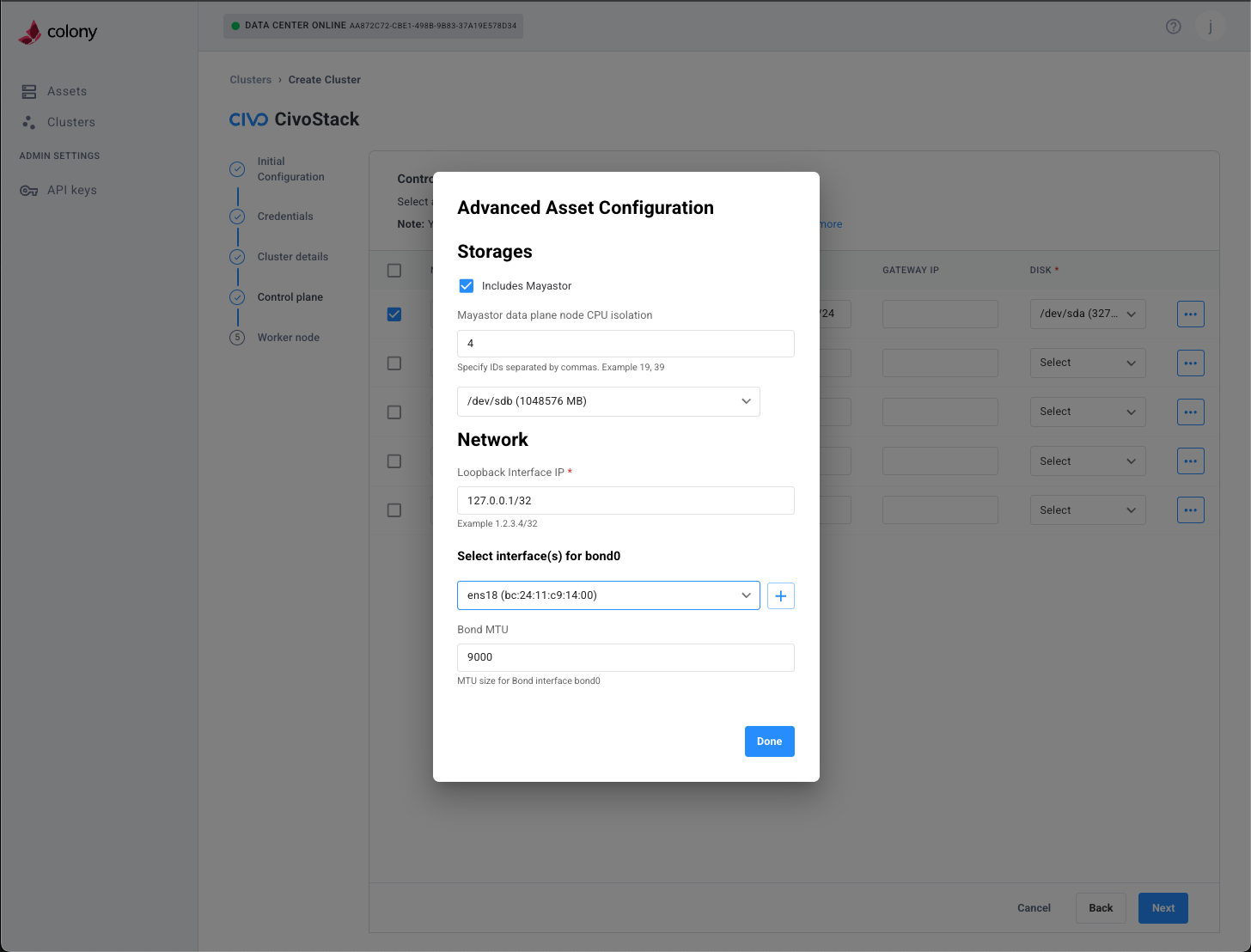

Advanced Asset Configuration

Advanced options include:

  • Mayastor Pool Disks: Storage backend for distributed volumes
  • CEPH Pool Disks: Alternative distributed storage option
  • Wasabi Backup: Object storage configuration for backups
  • Network Bonding: Link aggregation for redundancy (bond0)
  • Loopback Interface: Custom loopback IP configuration
tip

Most deployments don't need advanced configuration. Use defaults unless you have specific storage or networking requirements.

Click Next to continue.

Step 4: Configure Workers​

Worker configuration mirrors control plane setup:

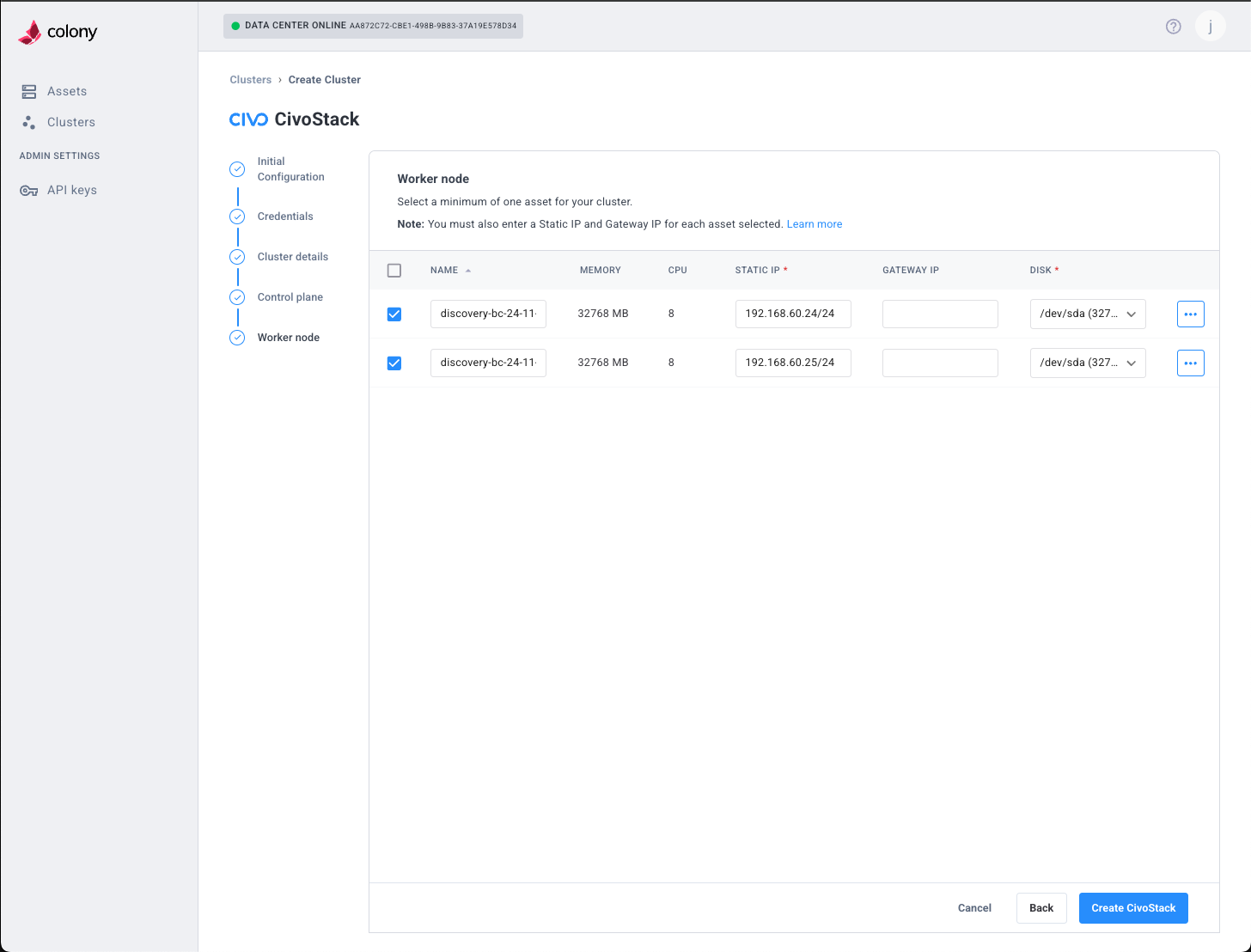

Worker node configuration

Select Assets​

  1. Click Add Worker Node
  2. Select available assets from dropdown
  3. Add multiple workers for workload distribution

Assign Static IPs​

For each worker, enter:

  • IP Address: Static IP (e.g., 192.168.1.201)
  • Subnet: Network prefix (e.g., 24)

Network & Storage​

  • DNS Servers: Same as control plane
  • NTP Servers: Same as control plane
  • Disk Device: Storage device path (e.g., /dev/sda)
tip

Workers typically need more CPU and RAM than control planes for running application workloads. Plan resource allocation accordingly.

Click Next to continue.

Step 5: Civo Stack Credentials​

Enter your Civo Stack credentials obtained from your account manager:

Region​

Your datacenter region identifier:

PHX1

Examples: PHX1, NYC3, LON1. Contact your account manager if unsure.

GitLab Token​

Personal access token for Civo Stack GitLab repositories:

glpat-xxxxxxxxxxxxxxxxxxxx

Required permissions: read_repository, read_registry.

Image Pull Secret​

Base64-encoded Docker configuration JSON for pulling CSE images:

eyJhdXRocyI6eyJnY3IuaW8iOnsidXNlcm5hbWUiOiJfanNvbl9rZXki...

This is the full base64-encoded string, not the raw JSON.

Civo API Token​

Authentication token for Civo services:

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

CSE Installer Image (Optional)​

Leave default unless instructed by your account manager:

ghcr.io/civo/cse-installer:latest

The installer auto-selects compatible component versions.

info

Need credentials? Contact your Civo account manager for access to GitLab repositories and container registries. These credentials are required for provisioning Civo Stack clusters.

Click Next to continue.

Step 6: Review and Create​

Review your configuration:

  • Cluster Name: Verify spelling and naming convention
  • Control Planes: Count and IP assignments
  • Workers: Count and IP assignments
  • Network: Gateway, DNS, NTP settings
  • Credentials: Region and tokens (partially masked)

If everything looks correct, click Create Civo Stack.

Provisioning Timeline​

Provisioning Status

Your cluster will progress through these stages:

StageDurationDescription
PXE Boot2-3 minAssets network boot and download Talos installer
OS Install5-7 minTalos Linux written to disk, machines reboot
Config Apply2-3 minTalos machine configs applied via API
Bootstrap3-5 minFirst control plane initializes Kubernetes
Node Join2-4 minAdditional nodes join cluster
CSE Installer5-10 minPlatform components deployed (autopilot, monitoring)
Ready1-2 minCluster healthy, kubeconfig available

Total: Approximately 40-60 minutes depending on hardware and network speed.

Monitor Progress​

Watch provisioning in real-time:

Colony UI:

  • Cluster status shows current stage
  • Progress bar indicates completion percentage
  • Logs available in cluster details

kubectl (from management cluster):

# Watch colony-agent logs
kubectl logs -n colony -l app=colony-agent -f

# Check Tinkerbell workflows
kubectl get workflows -A

# View workflow details
kubectl describe workflow -n tink-system <workflow-name>

Verification​

Download kubeconfig​

Once provisioning completes:

  1. Click Download Kubeconfig in the cluster details
  2. Save to ~/.kube/civo-stack-config
  3. Export for kubectl:

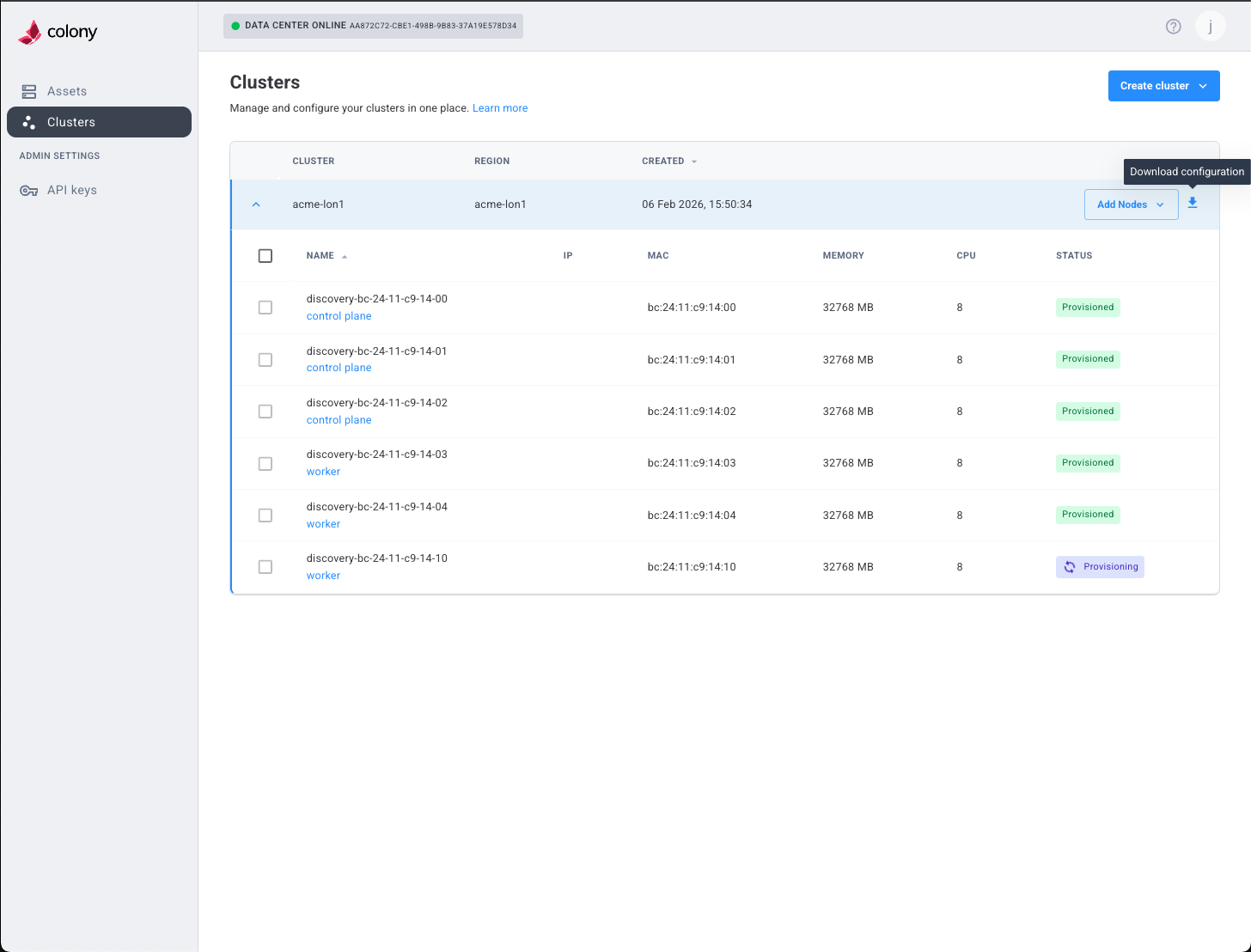

Download configuration

export KUBECONFIG=~/.kube/civo-stack-config

Verify Cluster Health​

Check all nodes are Ready:

kubectl get nodes

Expected output:

NAME                    STATUS   ROLES           AGE   VERSION
control-plane-01        Ready    control-plane   10m   v1.29.0
control-plane-02        Ready    control-plane   9m    v1.29.0
worker-01               Ready    <none>          8m    v1.29.0
worker-02               Ready    <none>          8m    v1.29.0

Check System Pods​

Verify core components are running:

kubectl get pods -A

Look for:

  • kube-system: CoreDNS, kube-proxy, Flannel
  • cse-installer: CSE installer job (Completed)
  • civo-system: Autopilot, monitoring agents (if applicable)

Verify CSE Components​

Check that CSE installed successfully:

# Check autopilot ConfigMap
kubectl get configmap -n kube-system autopilot-config

# Check gcr-mirror-pull secrets
kubectl get secrets -A | grep gcr-mirror-pull

# Verify CSE installer job completed
kubectl get jobs -A | grep cse-installer

All should show successful status.

Test Cluster Connectivity​

Deploy a test workload:

kubectl run nginx --image=nginx --port=80
kubectl expose pod nginx --port=80 --type=NodePort
kubectl get svc nginx

Access the service using any node IP and the NodePort to confirm networking works.

Talos Management (Optional)​

Download talosconfig​

In addition to kubeconfig, you can manage Talos nodes directly:

  1. In Colony UI, click Download Talosconfig
  2. Save to ~/.talos/config

Talosctl Commands​

Interact with Talos API:

# Check Talos version
talosctl version --nodes 192.168.1.101

# View node services
talosctl services --nodes 192.168.1.101

# Get node logs
talosctl logs --nodes 192.168.1.101 kubelet

# Reboot a node
talosctl reboot --nodes 192.168.1.201
tip

Talos has no SSH access. All management is via API using talosctl. This ensures immutability and security.

Troubleshooting​

Provisioning Stuck at PXE Boot​

Symptoms: Assets don't boot from network, provisioning times out.

Solutions:

  • Verify DHCP server is running and configured with PXE settings
  • Check TFTP server is reachable from assets: tftp <load-balancer-ip>
  • Confirm assets have PXE boot enabled in BIOS/UEFI
  • Ensure network interface connected to correct VLAN
  • Check Tinkerbell smee logs: kubectl logs -n tinkerbell -l app=smee

CSE Installer Fails​

Symptoms: CSE installer job shows Error or CrashLoopBackOff.

Solutions:

  • Verify credentials are correct (GitLab token, image pull secret, API token)
  • Check image pull secret format (must be base64-encoded Docker configuration JSON)
  • Ensure cluster has internet access to pull images from gcr.io or private registry
  • Review installer logs: kubectl logs -n <namespace> -l job-name=cse-installer
  • Confirm region identifier matches your datacenter

Nodes Not Joining​

Symptoms: Some nodes show in Talos but not kubectl get nodes.

Solutions:

  • Check node status in Talos: talosctl get members --nodes <control-plane-ip>
  • Verify static IPs are correct and pingable
  • Ensure firewall allows port 6443 (API server) and 50000-50001 (Talos API)
  • Check kubelet logs: talosctl logs --nodes <node-ip> kubelet
  • Confirm DNS is working: talosctl logs --nodes <node-ip> containerd | grep dns

API Server Unreachable​

Symptoms: kubectl commands timeout or refuse connection.

Solutions:

  • Verify kubeconfig uses correct IP and port
  • Check control plane nodes are healthy: talosctl services --nodes <control-plane-ip>
  • Ensure port 6443 is not blocked by firewall
  • Confirm API server is running: talosctl logs --nodes <control-plane-ip> kube-apiserver
  • Try accessing from management cluster first to rule out client networking issues

CSE Components Missing​

Symptoms: Autopilot ConfigMap or gcr-mirror-pull secrets not found.

Solutions:

  • Check CSE installer job succeeded: kubectl get jobs -A | grep cse-installer
  • Review installer logs for errors: kubectl logs -n <namespace> -l job-name=cse-installer
  • Verify image pull secret is valid and not expired
  • Re-run installer manually if needed (contact Civo support)

What's Next​

Your Civo Stack cluster is ready! Here's what you can do:

Add More Nodes​

Scale your cluster by adding workers or control planes:

Add Nodes to Cluster →

Deploy Applications​

Use kubectl or Helm to deploy workloads:

# Example: Deploy a simple app
kubectl create deployment hello --image=gcr.io/google-samples/hello-app:1.0
kubectl expose deployment hello --port=8080 --type=LoadBalancer

Configure Storage​

Set up persistent storage for stateful apps:

# Check available storage classes
kubectl get storageclass

# Create a PersistentVolumeClaim
kubectl apply -f - <<EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: my-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
EOF

Enable Monitoring​

Access built-in observability (if CSE installed):

  • Prometheus metrics
  • Grafana dashboards
  • Log aggregation

Check your Civo account for access URLs.

Explore Autopilot​

Review autopilot configuration:

kubectl get configmap -n kube-system autopilot-config -o yaml

Autopilot manages:

  • Automatic updates
  • Self-healing
  • Policy enforcement
